CARACTERÍSTICAS DE HARDWARE | |
---|---|

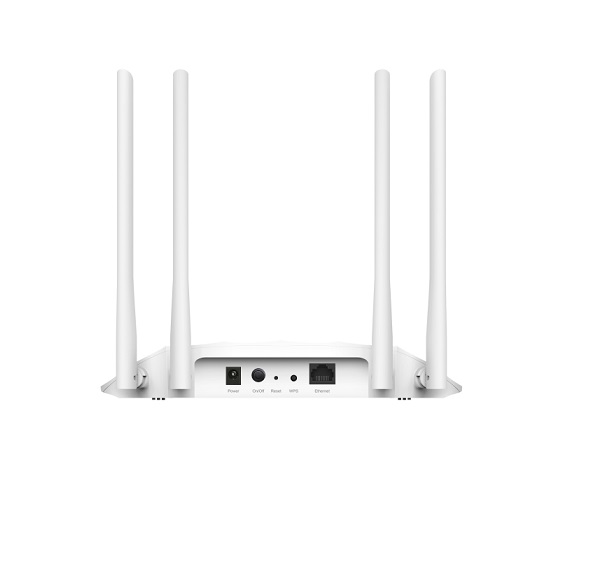

Interface | 1× 10/100/1000 Mbps Ethernet Port (Supports Passive PoE) |
Botão | Power On/Off Button, WPS Button, Reset Button |
Fonte de alimentação Externa | 12V/1.5A |
Wireless Standards | IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz |
Dimensões (L x P x A) | 8.9 × 5.7 × 1.5 in (225×145.5×37 mm) |
Tipo de Antena | 4 Fixed High Performance Antennas |
FUNCIONALIDADES WI-FI | |
---|---|
Frequências | 2.4 GHz and 5 GHz |
Signal Rate | 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz |
Reception Sensitivity | 5 GHz: 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm 2.4 GHz: |
Potência de transmissão | CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz) FCC: <30dBm(2.4GHz&5GHz) |
Modos Wireless | Access Point, Range Extender, Client, Multi-SSID |
Funções Wireless | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control |
Segurança Wireless | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
DHCP | Server, DHCP Client List |
Qualidade de Serviço | WMM |
Funções Avançadas | Captive Portal |
OUTROS | |
---|---|
Certificações | CE, FCC, RoHS |

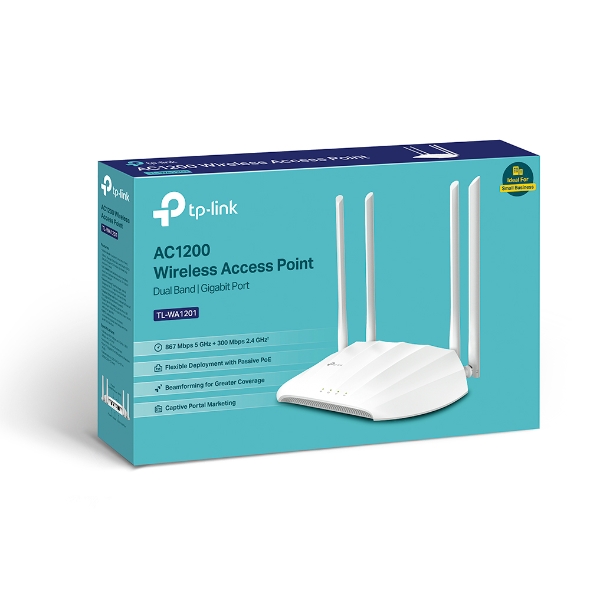

Conteúdo da embalagem | Wireless Access Point TL-WA1201 Power Adapter RJ45 Ethernet Cable Quick Installation Guide PoE Power Injector |
Requisitos de Sistema | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
Environment | Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Protocol Support | IPv4, IPv6 |
